Martec · Linear Plus range

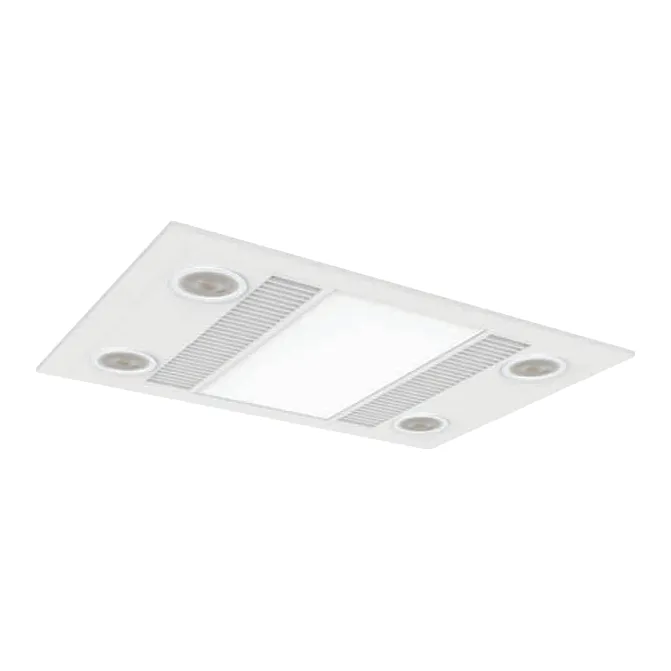

Linear Plus 3-in-1 Bathroom Heater
Updated slimline 3-in-1 bathroom unit with twin 500W heat tubes, half-heat, exhaust and tricolour GU10 LEDs.
- IP ratingIPX2
- Colour temperature3000K / 4000K / 5000K
Product code MBHLP1000W
See it in our Albury showroom
Open Monday to Saturday
Cnr Dean & David Streets · Get directions
- Advice on sizing, colour and installation
- Local back-up after you buy
About the Linear Plus 3-in-1 Bathroom Heater

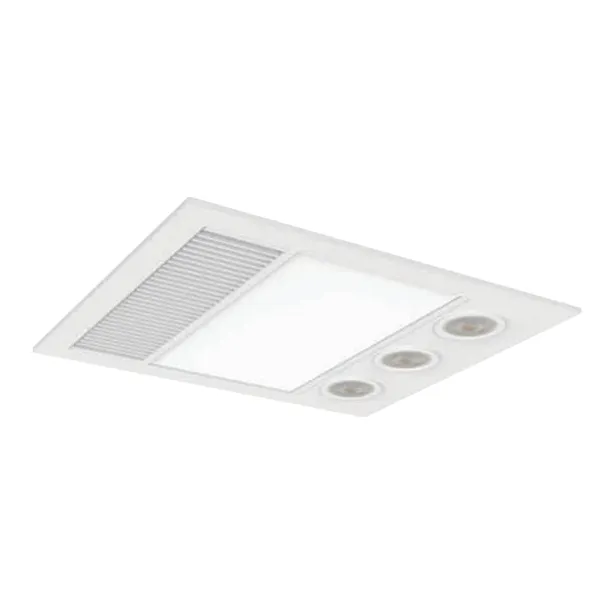

Linear Plus updates the Linear 3-in-1 with two 500W R7s heat tubes, so you can run half heat for mild mornings or full 1000W when it is cold, plus improved airflow from the ball bearing exhaust. Lighting comes from tricolour GU10 LED globes that switch between 3000K, 4000K and 5000K. The standard size takes four globes; Linear Mini Plus is smaller for ensuites and takes three. Metal housing with aluminium fascia, thermal overload protection and a backdraft stopper. Supplied with a 3m duct, clips, external grille and three gang wall switch. IPX2 rated.
Featured in the Martec Fan & Lighting Catalogue, page 118.
- 2 x 500W R7s heat tubes with half-heat function
- Ball bearing exhaust with improved airflow
- Tricolour GU10 LED globes (3000K/4000K/5000K)
- Metal housing, aluminium fascia
- IPX2 rated
- Compatible with Martec bathroom remote MBHREM (sold separately)
Specifications
- Brand
- Martec
- Range
- Linear Plus
- Type
- 3-in-1 bathroom heater
- Heating
- 2 x 500W R7s heat tubes
- Exhaust fan
- 40W
- Lighting
- 4 x 6W tricolour GU10, 2510lm (Linear Plus); 3 x 6W tricolour GU10, 1890lm (Linear Mini Plus)
- Colour temperature
- 3000K / 4000K / 5000K
- Cutout
- 455 x 305mm (Linear Plus), 350 x 305mm (Linear Mini Plus)
- Min ceiling depth
- 210mm (Linear Plus), 220mm (Linear Mini Plus)
- Ducting
- 150mm (Linear Plus), 125mm (Linear Mini Plus)
- Noise
- ≤40dB
- IP rating
- IPX2
Options & product codes
| Code | Size | Colour |
|---|---|---|
| MBHLP1000W | Linear Plus | White |
| MBHMP1000W | Linear Mini Plus | White |
