Contour Heat Lamp Bathroom Heater
Rounded heat lamp bathroom heater with 1, 2 or 4 lamps; 2 and 4 lamp models add exhaust and LED light.
- IP ratingIPX4
Product code MBHC1LW
- Advice on sizing, colour and installation
- Local back-up after you buy
About the Contour Heat Lamp Bathroom Heater

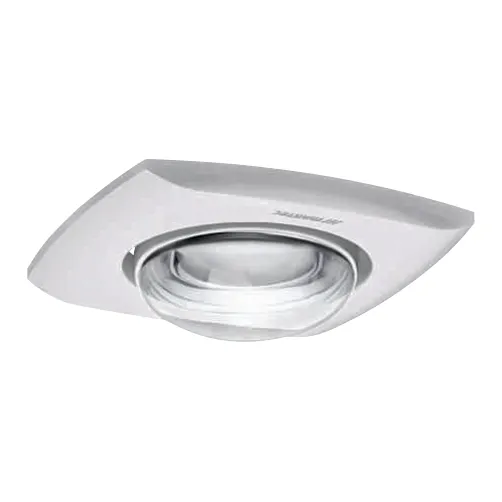

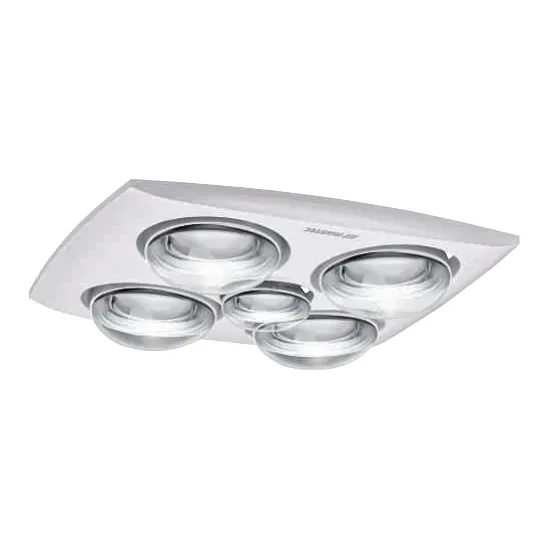

Contour has soft, rounded lines and comes in three sizes. Contour 1 is a single 275W heat lamp unit for small ensuites and powder rooms. Contour 2 and Contour 4 are 3-in-1 units with two or four heat lamps, an exhaust fan and a centre 8W R80 LED lamp. The four-lamp model has a half-heat setting. Choose white or silver. All versions are IPX4 rated with polypropylene housing and polycarbonate fascia, and heat lamps and a wall switch are included.
Featured in the Martec Bathroom Catalogue, page 21.
- 1, 2 or 4 x 275W heat lamps (supplied)
- Exhaust fan and 8W R80 LED on 2 and 4 lamp models
- Half-heat function on 4-lamp model
- White or silver finish
- IPX4 rated
Specifications
- Brand
- Martec
- Range
- Contour
- Type
- Heat lamp bathroom heater
- Heating
- 1, 2 or 4 x 275W E27 heat lamps
- Exhaust fan
- 25W (Contour 2 and 4)
- Max airflow
- 240m³/hr (Contour 2), 250m³/hr (Contour 4)
- Lighting
- 8W R80 E27 LED, 800lm, 3000K (Contour 2 and 4)
- Cutout
- 166 x 166mm (1), 390 x 220mm (2), 300 x 300mm (4)
- Min ceiling depth
- 180mm (1), 220mm (2 and 4)
- Noise
- ≤40dB
- IP rating
- IPX4
- Warranty
- 2 years in-home
Options & product codes
| Code | Model | Colour |
|---|---|---|
| MBHC1LW | Contour 1 | White |
| MBHC1LS | Contour 1 | Silver |
| MBHC2LW | Contour 2 | White |
| MBHC2LS | Contour 2 | Silver |
| MBHC4LW | Contour 4 | White |
| MBHC4LS | Contour 4 | Silver |
Questions about the Contour Heat Lamp Bathroom Heater
What models does the Contour Heat Lamp Bathroom Heater come in?
The Contour Heat Lamp Bathroom Heater comes in 3 models: Contour 1, Contour 2 and Contour 4.
How big is the Contour Heat Lamp Bathroom Heater?
Cutout: 166 x 166mm (1), 390 x 220mm (2), 300 x 300mm (4).
What motor and controls does the Contour Heat Lamp Bathroom Heater have?
Max airflow: 240m³/hr (Contour 2), 250m³/hr (Contour 4). Noise: ≤40dB.
What is the IP rating of the Contour Heat Lamp Bathroom Heater?
IPX4.
What warranty does the Contour Heat Lamp Bathroom Heater have?
2 years in-home.
