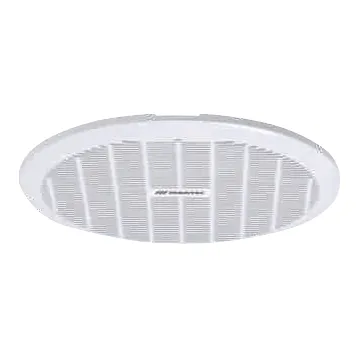

Core Exhaust Fan
Traditional round grille ceiling exhaust fan in 240 or 290mm with high extraction and DIY plug-in installation.
- IP ratingIPX2
- Max airflow310m³/hr (240), 540m³/hr (290)
Product code MXFC20W
- Advice on sizing, colour and installation
- Local back-up after you buy
About the Core Exhaust Fan
Core is a traditional-style round exhaust fan with a grille face, focused on moving plenty of air. The 240mm model extracts up to 310 cubic metres per hour and the 290mm model up to 540, making the larger size suitable for bigger bathrooms, laundries and toilets without a window. Both are supplied with a 1m flex and plug for straightforward DIY installation where a ceiling power point is available. Polypropylene housing with ABS fascia, ultra-low profile and IPX2 rated.
Featured in the Martec Bathroom Catalogue, page 32.
- High air extraction
- 240mm or 290mm sizes
- DIY flex and plug supplied
- Ultra-low profile
- IPX2 rated
Specifications
- Brand
- Martec
- Range
- Core
- Type
- Exhaust fan
- Exhaust fan
- 25W (240), 35W (290)
- Max airflow
- 310m³/hr (240), 540m³/hr (290)
- Cutout
- 240mm or 290mm
- Min ceiling depth
- 220mm
- Noise
- ≤40dB (240), ≤50dB (290)
- IP rating
- IPX2
- Warranty
- 2 years replacement
Options & product codes
| Code | Size | Colour |
|---|---|---|
| MXFC20W | 240mm | White |
| MXFC25W | 290mm | White |
Questions about the Core Exhaust Fan
What sizes does the Core Exhaust Fan come in?
The Core Exhaust Fan comes in 2 sizes: 240mm and 290mm.
How big is the Core Exhaust Fan?
Cutout: 240mm or 290mm.
What motor and controls does the Core Exhaust Fan have?
Max airflow: 310m³/hr (240), 540m³/hr (290). Noise: ≤40dB (240), ≤50dB (290).
What is the IP rating of the Core Exhaust Fan?
IPX2.
What warranty does the Core Exhaust Fan have?
2 years replacement.
