Linear 3-in-1 Bathroom Heater
Slimline 3-in-1 bathroom unit with a 1000W heat tube, strong exhaust and GU10 LED lights, in two sizes.
- IP ratingIPX2
- Colour temperature3000K
Product code MBHL1000W
- Advice on sizing, colour and installation
- Local back-up after you buy

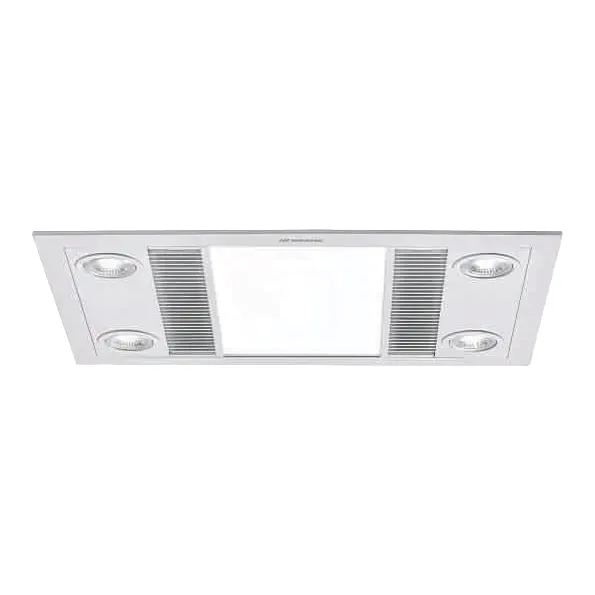

About the Linear 3-in-1 Bathroom Heater
Linear is a slim, rectangular 3-in-1 unit that heats, ventilates and lights the bathroom from one ceiling fitting. Warmth comes from a 1000W R7s heat tube rather than bulky heat lamps, and a ball bearing exhaust motor clears steam quickly. GU10 LED globes in each corner give general lighting. The standard Linear takes four globes and extracts up to 600 cubic metres per hour; Linear Mini is smaller for ensuites, with three globes and 480 cubic metres per hour. Steel housing, aluminium fascia, IPX2 rated, with thermal overload protection and a backdraft stopper.
Featured in the Martec Bathroom Catalogue, page 5.
- Heat, exhaust and light in one unit
- 1000W R7s heat tube
- Ball bearing exhaust motor
- GU10 LED lighting (3000K globes supplied)
- Steel housing with aluminium fascia
- IPX2 rated
- Compatible with Martec bathroom LCD remote MBHREM (sold separately)
Specifications
- Brand
- Martec
- Range
- Linear
- Type
- 3-in-1 bathroom heater
- Heating
- 1 x 1000W R7s heat tube
- Exhaust fan
- 40W
- Max airflow
- 600m³/hr (Linear), 480m³/hr (Linear Mini)
- Lighting
- 4 x 6W GU10 LED, 2510lm (Linear); 3 x 6W GU10 LED, 1890lm (Linear Mini)
- Colour temperature
- 3000K
- Cutout
- 455 x 305mm (Linear), 350 x 305mm (Linear Mini)
- Min ceiling depth
- 210mm (Linear), 220mm (Linear Mini)
- Noise
- ≤40dB
- IP rating
- IPX2
- Included
- 3m duct, duct clips, external grille, 3 gang wall switch
- Warranty
- 2 years in-home
Options & product codes
| Code | Size | Colour |
|---|---|---|
| MBHL1000W | Linear | White |
| MBHL1000S | Linear | Silver |
| MBHM1000W | Linear Mini | White |
| MBHM1000S | Linear Mini | Silver |
