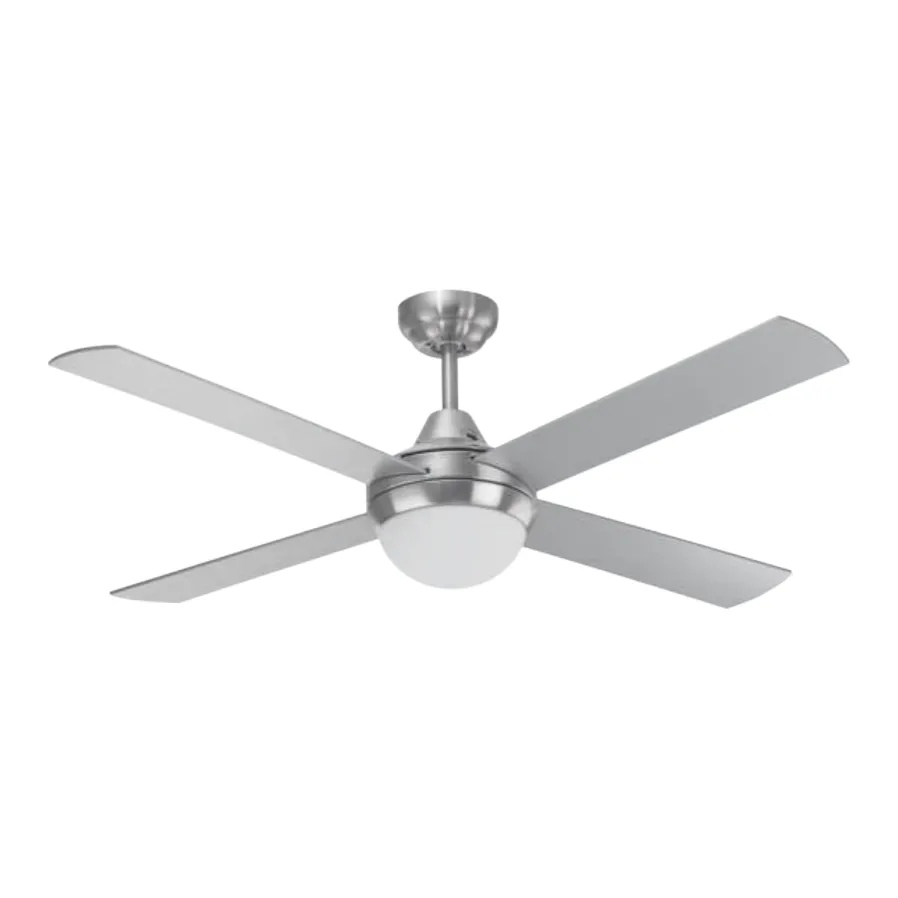

Lonsdale AC Ceiling Fan
A 120cm AC ceiling fan with quiet plywood blades, a metal housing and an optional twin B22 light, with remote versions available.
- Blade sweep1200mm (48")
- MotorAC, 60W
- Max airflow7,400 m³/hr
- Drop335mm (no light), 428mm (light)
Product code FC920124WH
- Advice on sizing, colour and installation
- Local back-up after you buy
About the Lonsdale AC Ceiling Fan
Lonsdale is a traditional-style 120cm fan with a metal motor housing and plywood blades that run quietly, a good fit for bedrooms and mid-sized living rooms. The standard model comes with a 3-speed wall control. It is also offered with a twin B22 light kit (globes not included), and in remote-controlled light versions in white or brushed chrome where the light is dimmable. It reverses for winter use and is tropically rated for indoor and enclosed outdoor areas. Extension rods are available separately.
Featured in the Mercator Fan Catalogue 2025–26, page 45.
- Quiet-running plywood blades
- Corrosion resistant metal housing
- 3-speed wall control included
- Optional light kit for 2 x B22 globes (not included)
- Remote-controlled light models available
- Reversible airflow, tropically rated
Specifications
- Brand
- Mercator
- Range
- Lonsdale
- Type
- AC ceiling fan
- Blade sweep
- 1200mm (48")
- Blades
- Plywood
- Motor
- AC, 60W
- Max airflow
- 7,400 m³/hr
- Fan speeds
- 3
- Lamp base
- 2 x B22, 10W max, globes not included (light models)
- Drop
- 335mm (no light), 428mm (light)
- Slope tilt
- Up to 23° (no remote), up to 9° (remote)
- Warranty
- 5 year motor, 2 year in-home
Options & product codes
| Code | Colour | Model |
|---|---|---|
| FC920124WH | White | Fan only |
| FC922124WH | White | B22 light kit |
| FC922124RWH | White | B22 light kit with remote |
| FC922124RBC | Brushed Chrome | B22 light kit with remote |
Questions about the Lonsdale AC Ceiling Fan
What models does the Lonsdale AC Ceiling Fan come in?
The Lonsdale AC Ceiling Fan comes in 3 models: Fan only, B22 light kit and B22 light kit with remote.
How big is the Lonsdale AC Ceiling Fan?
Blade sweep: 1200mm (48"). Drop: 335mm (no light), 428mm (light).
What globe does the Lonsdale AC Ceiling Fan take?
Lamp base: 2 x B22, 10W max, globes not included (light models).
What motor and controls does the Lonsdale AC Ceiling Fan have?
Motor: AC, 60W. Max airflow: 7,400 m³/hr. Fan speeds: 3.
What warranty does the Lonsdale AC Ceiling Fan have?
5 year motor, 2 year in-home.
