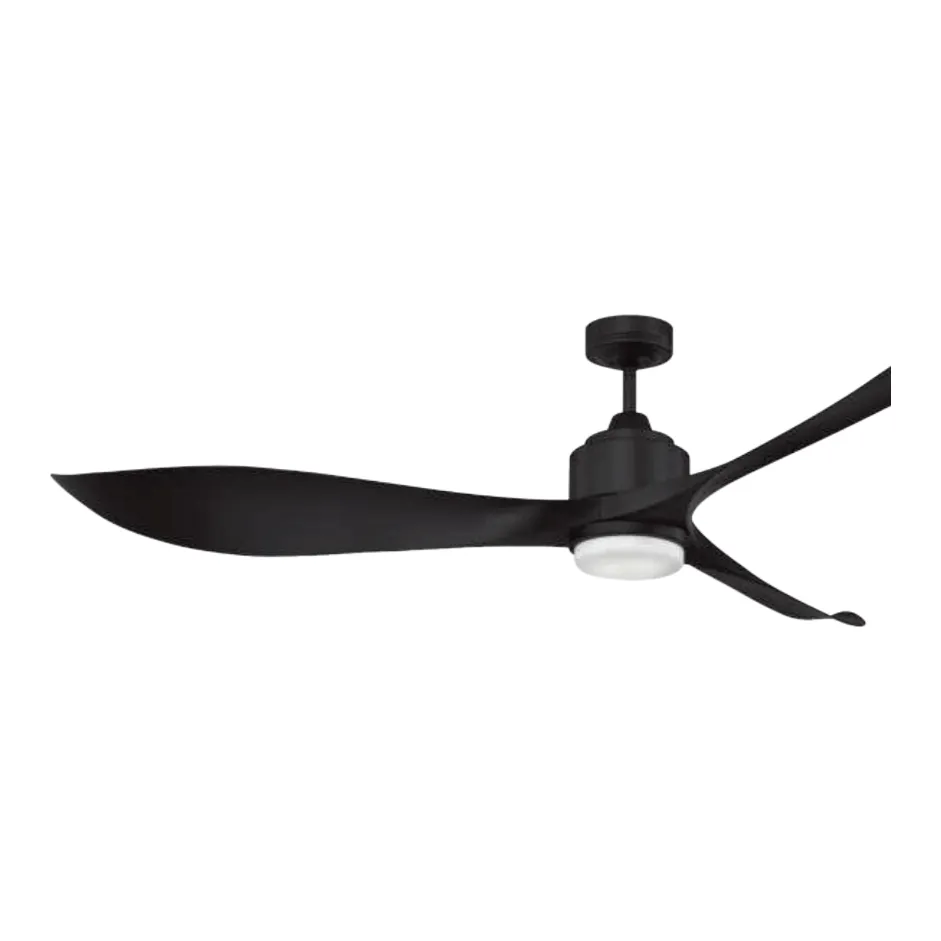

Eagle II DC Ceiling Fan
A three-blade DC ceiling fan with a metal body in 122cm (Lite), 142cm and 168cm (XL) sizes and a choice of finishes, with optional CCT LED light.
- MotorDC, 35W
Product code FC360123BB
- Advice on sizing, colour and installation
- Local back-up after you buy
About the Eagle II DC Ceiling Fan

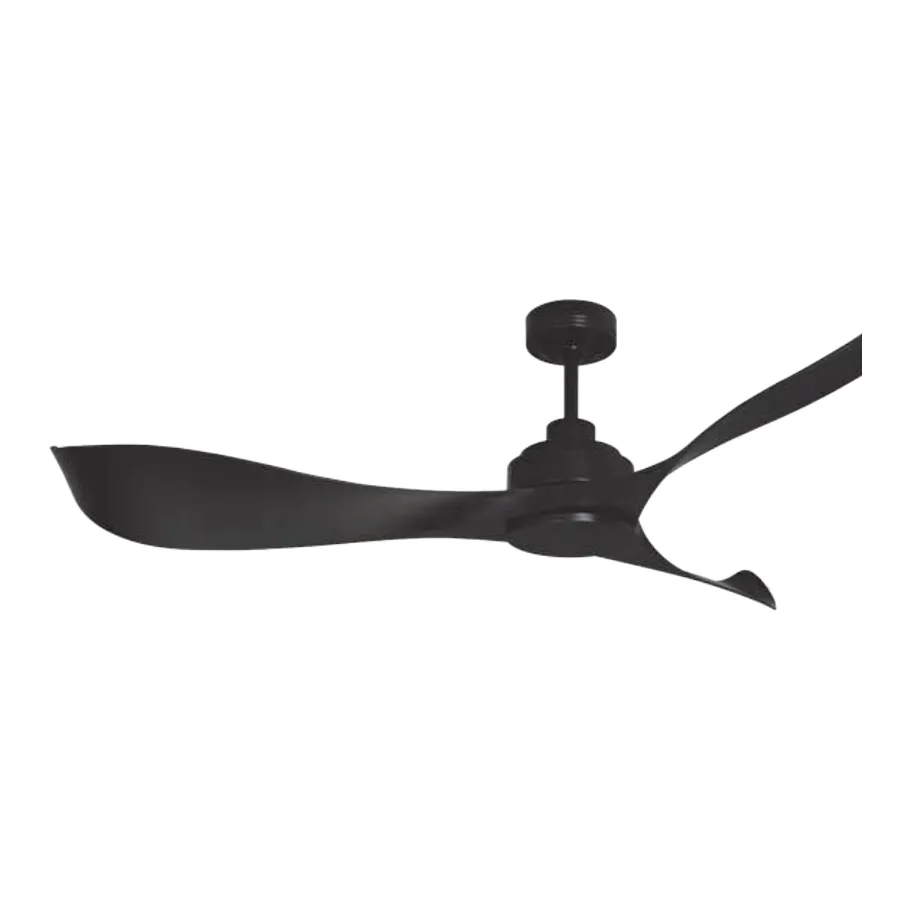

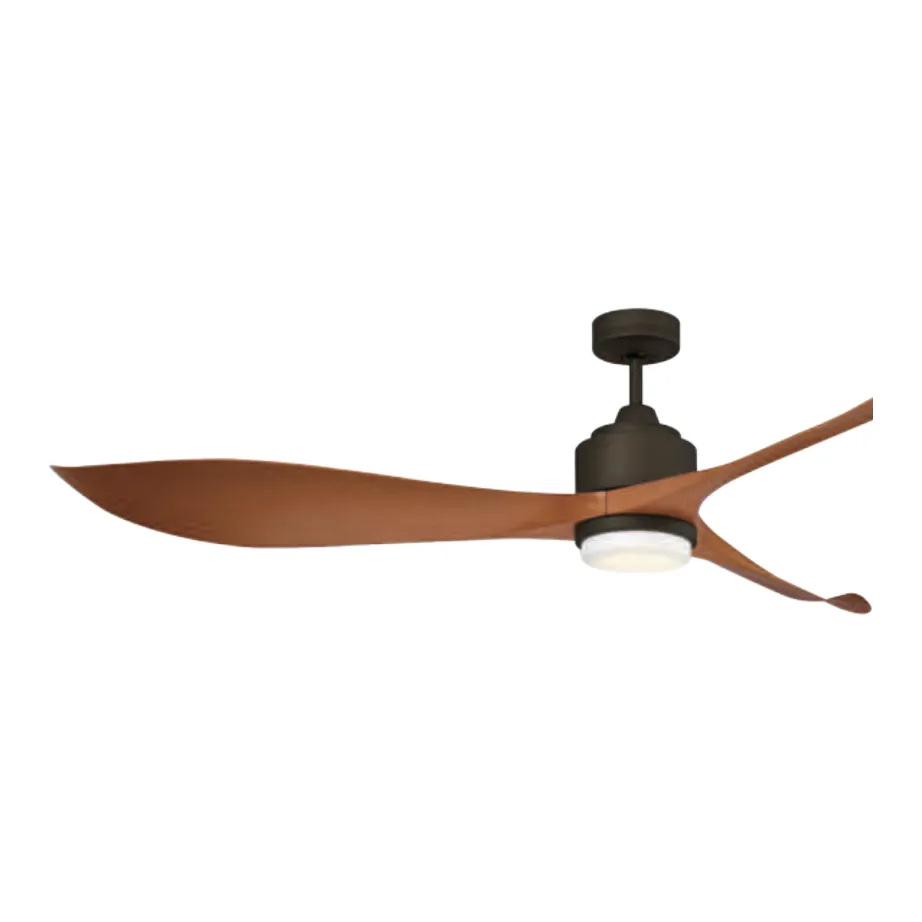

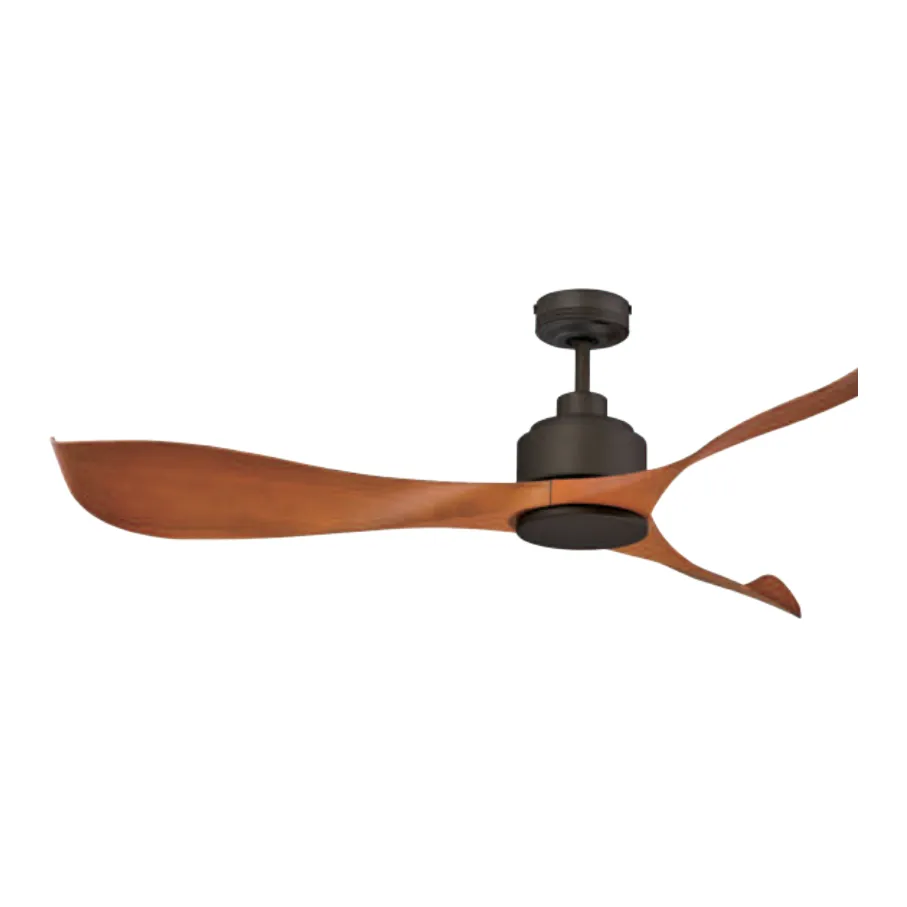

Eagle II is a sleek three-blade DC fan with a durable metal body and swept ABS blades, offered in three sizes so it can suit anything from a bedroom to a great room. The 122cm Eagle II Lite comes in black or rubbed bronze, the 142cm Eagle II in white, black and rubbed bronze as a fan only or in black and graphite with light, and the 168cm Eagle XL II in white, black, graphite and rubbed bronze, always with light. Each runs on a quiet 35W DC motor with a 6-speed remote and reverse. The LED light is an 18W four-step CCT unit that can be dimmed.
Featured in the Mercator Fan Catalogue 2025–26, page 89.
- Three sizes: 122cm Lite, 142cm and 168cm XL
- Durable metal body with UV resistant ABS blades
- 6-speed remote included
- 4-step 18W CCT LED light option (up to 1200lm)
- Reversible airflow, tropically rated
- Adjustable slope tilt up to 13°
Specifications
- Brand
- Mercator
- Range
- Eagle II
- Type
- DC ceiling fan
- Blades
- 3, ABS
- Motor
- DC, 35W
- Max airflow
- 8,790 m³/hr (122cm), 9,888 m³/hr (142cm), 14,340 m³/hr (168cm)
- Fan speeds
- 6
- Light
- 18W CCT LED (light models)
- Warranty
- 6 year motor, 3 year in-home
Options & product codes
| Code | Size | Colour | Light |
|---|---|---|---|

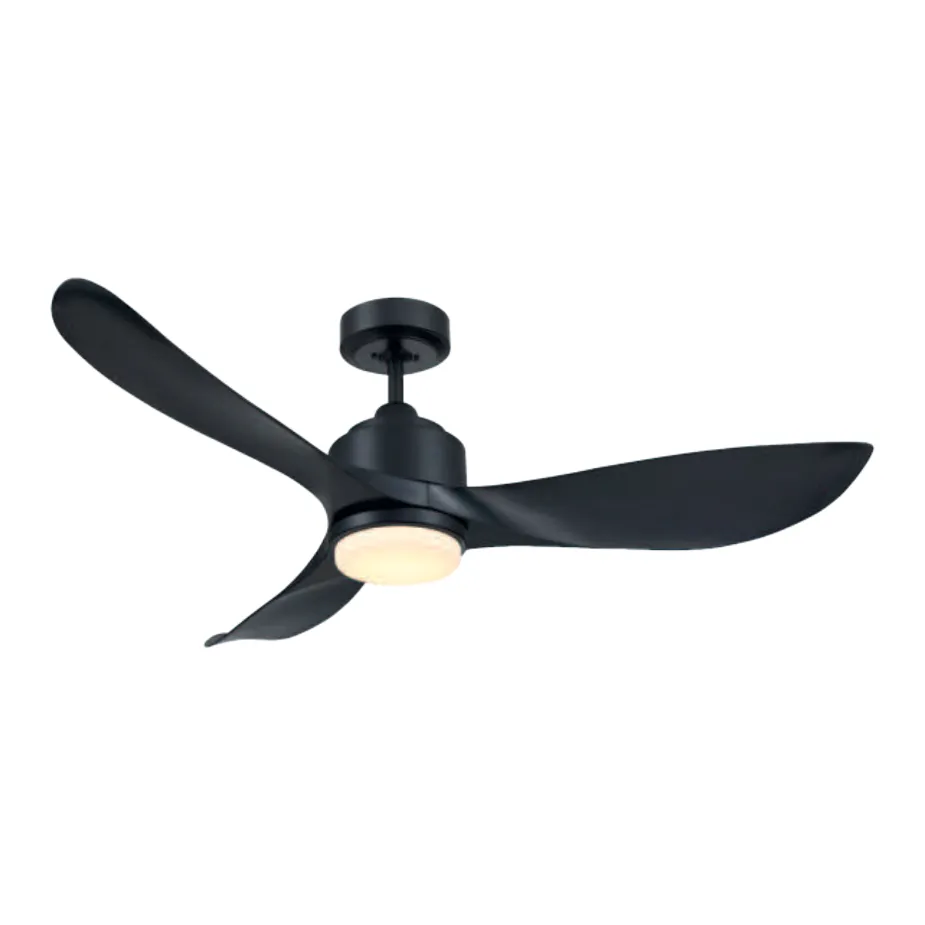

| FC360123BB | 122cm | Black | No light |

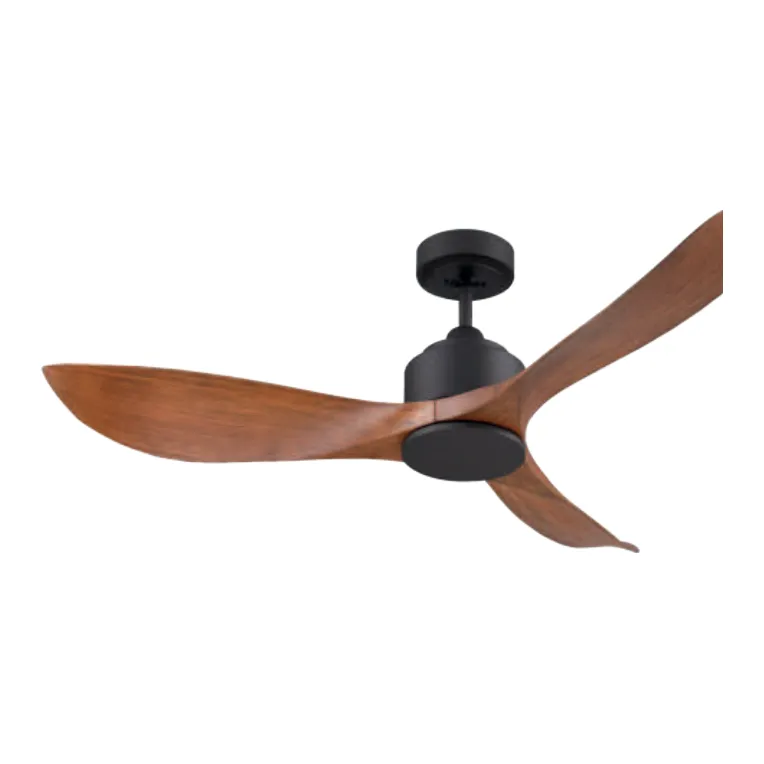

| FC360123RB | 122cm | Rubbed Bronze | No light |
| FC368123BB | 122cm | Black | LED light |
| FC368123RB | 122cm | Rubbed Bronze | LED light |
| FC360143WH | 142cm | White | No light |
| FC360143BB | 142cm | Black | No light |
| FC360143RB | 142cm | Rubbed Bronze | No light |
| FC368143BB | 142cm | Black | LED light |

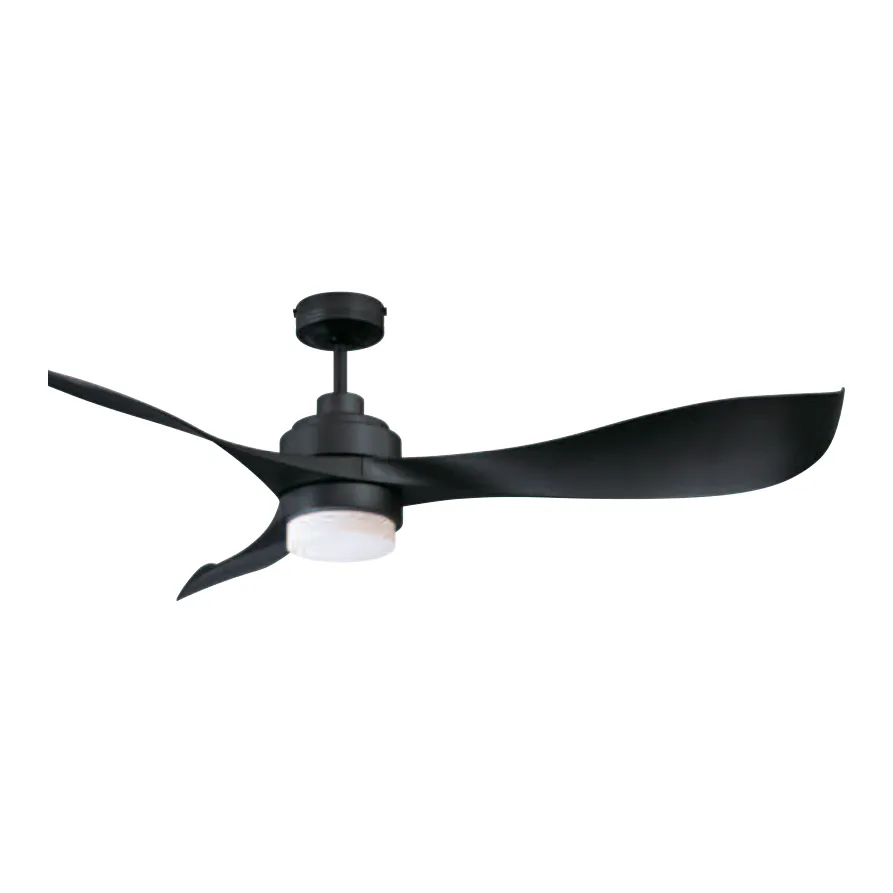

| FC368143GR | 142cm | Graphite | LED light |

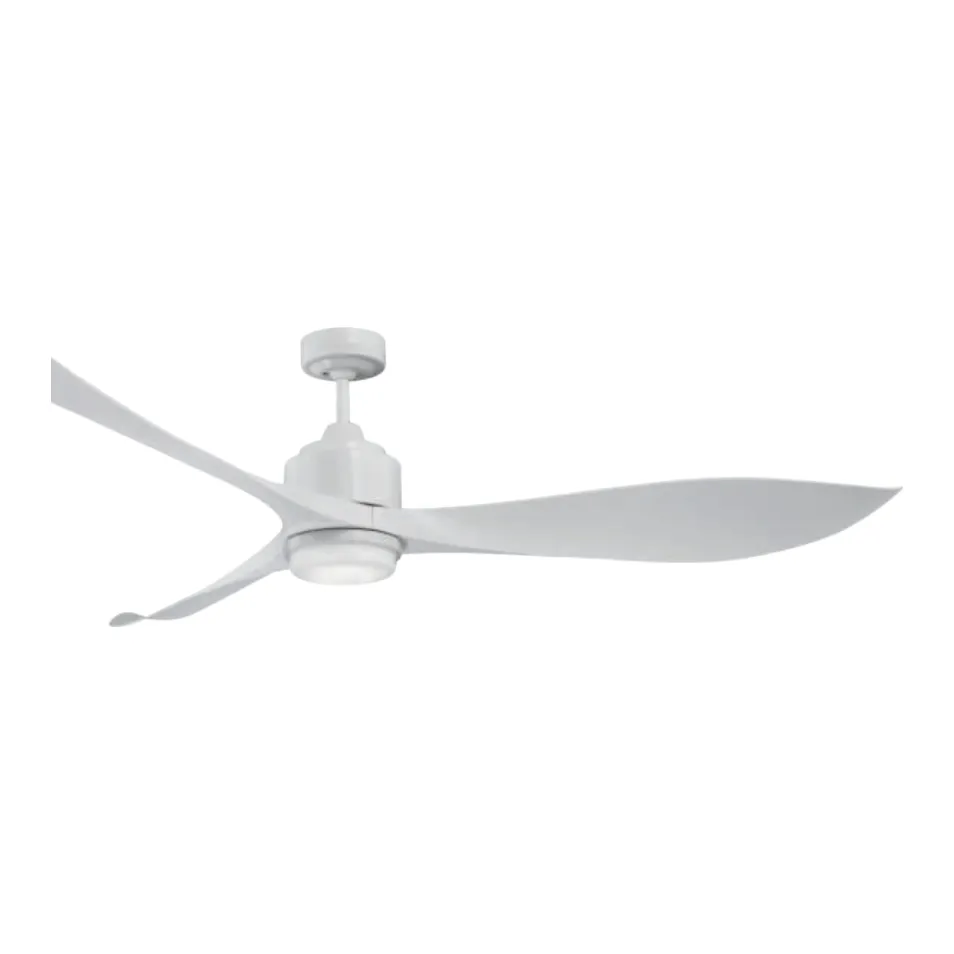

| FC368163WH | 168cm | White | LED light |
| FC368163BB | 168cm | Black | LED light |

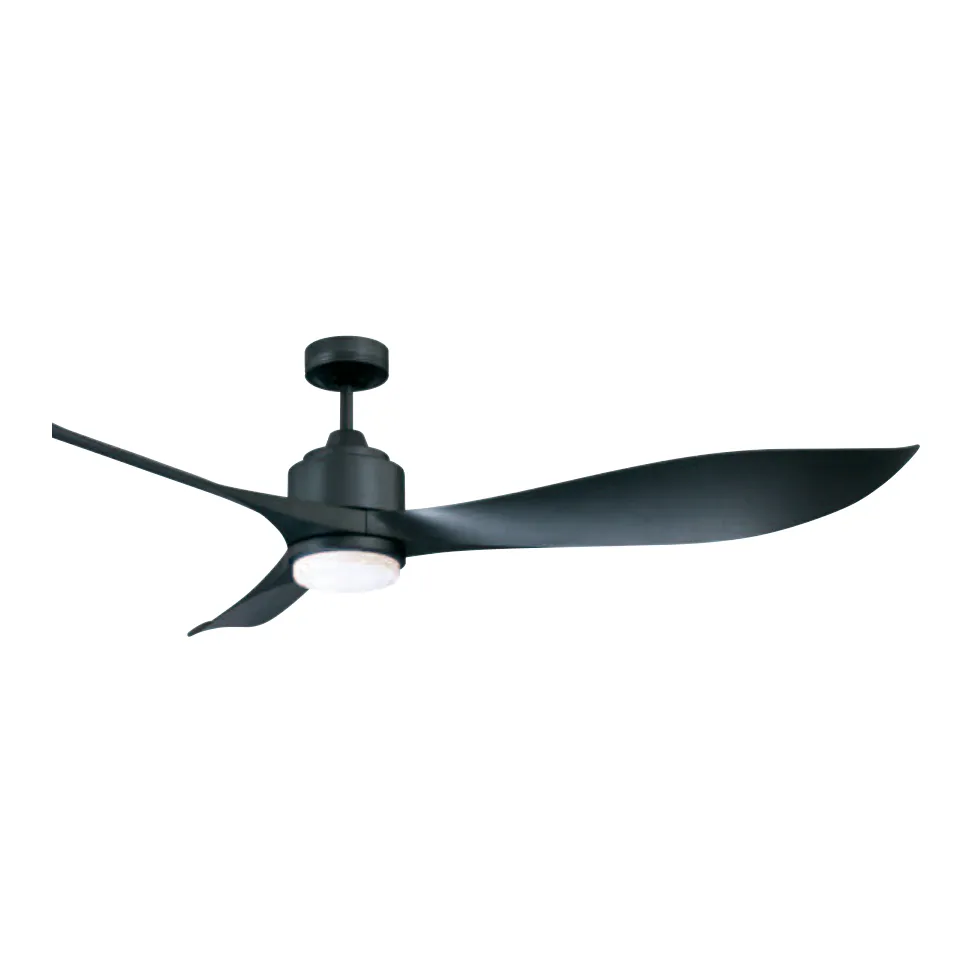

| FC368163GR | 168cm | Graphite | LED light |
| FC368163RB | 168cm | Rubbed Bronze | LED light |
