Domus · Retrofit range

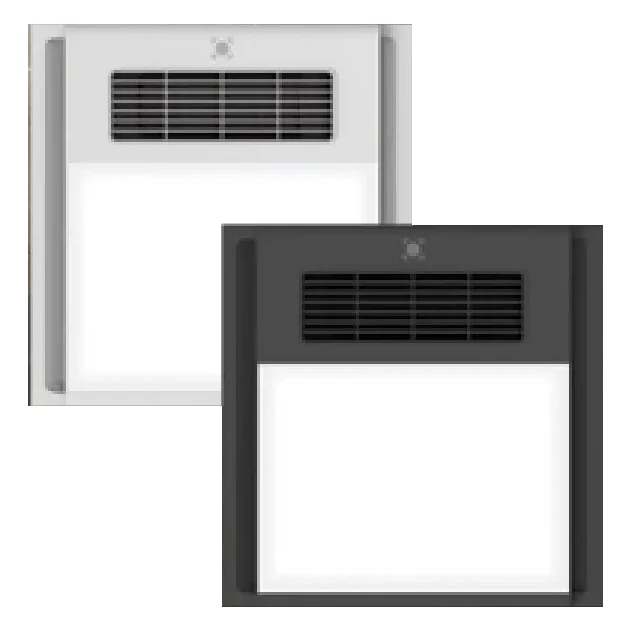

Heatcore Retrofit 4-in-1 PTC Bathroom Heater
Square retrofit 4-in-1 PTC bathroom heater in white or black, made to replace old 2 and 4 lamp infrared heaters.
- Motor60W AC
- IP ratingIPX2
- Power2250W
- Colour temperatureTri-colour (3000K/4000K/5000K)
Product code 56024
See it in our Albury showroom
Open Monday to Saturday
Cnr Dean & David Streets · Get directions
- Advice on sizing, colour and installation
- Local back-up after you buy
About the Heatcore Retrofit 4-in-1 PTC Bathroom Heater
Heatcore is the square-panel partner to Orbis in the Domus Retrofit range. It is sized to cover the cutouts of most existing two and four lamp infrared heaters, so upgrading an older bathroom is simple. A vent strip sits above a flat 12W tri-colour LED panel, with PTC fan heat, 300 cubic metre per hour extraction and a circulation fan behind. Available with a white or black fascia, it runs from the included digital wall controller and shuts off automatically after two hours.
Featured in the Domus Bathroom Heat Units 2026–27, page 14.
- Retrofits most existing 2 and 4 lamp infrared heater cutouts
- 4-in-1: heat, exhaust, circulation fan and light
- PTC fan heat with dual heat settings
- Tri-colour switchable 12W LED panel
- White or black fascia
- Digital wall controller included
Specifications
- Brand
- Domus
- Range
- Retrofit
- Type
- 4-in-1 bathroom heater
- Input voltage
- 240V AC
- Power
- 2250W
- Heat
- 2150W PTC
- Motor
- 60W AC
- Air extraction
- 300m3/h
- Light
- 12W LED
- Colour temperature
- Tri-colour (3000K/4000K/5000K)
- CRI
- 80+
- IP rating
- IPX2
- Noise
- 46dB or less
- Cutout
- 330 x 350mm
- Fascia size
- 390 x 390mm
- Duct size
- 100mm
- Unit height
- 158mm
- Minimum clearance height
- 200mm
- Warranty
- 5 year in-home
Options & product codes
| Code | Colour |
|---|---|
| 56024 | White |

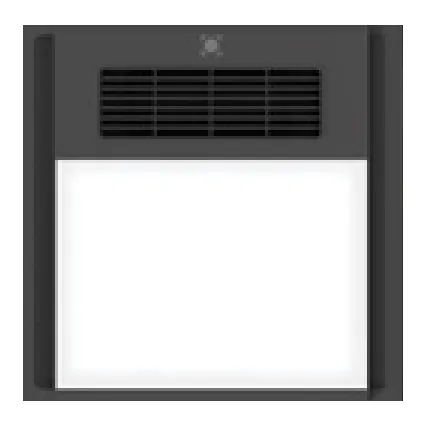

| 56025 | Black |
